7.6.1       View Groups

You can view details about each group object, including the group caption, OID (Object Identifier), and description.

To view groups:

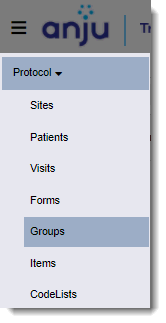

1.       Click the    Main Menu icon (top left).

2.      Select Protocol > Groups from the drop-down list.

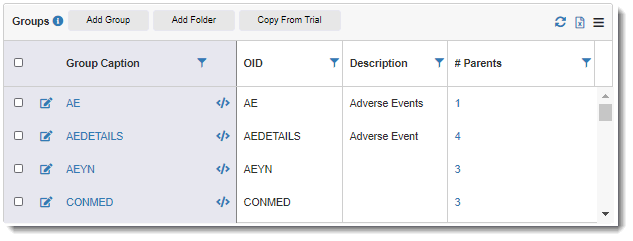

The Groups page displays the group caption, OID (Object Identifier) and description of each group. The links under the # Parents column display the number of forms that are associated with the group. This indicates the number of places in the study build the group is being used.

3.       To view levels within the object hierarchy, do the following:

·         To view the object in the lower hierarchal level, click the group caption. For example, clicking the AEDETAILS caption in the Groups page above displays the Items page.

·         To view the number of objects in the higher level of the hierarchy, click the # Parents link. For example:

Clicking "4" in the Groups page above displays the Forms page, which contains four forms associated with the group.

Clicking "1" of the AE-OMCM COD caption in the Forms page above displays the Visits page, which contains 1 visit associated with the form.
